FSR30

FSR30 SPECIFICATION & THERMAL DATA
Model Name :
FSR30-
{{boxModelName.HSHEIGHT}}
B
{{boxModelName.FAN}}
-
{{boxModelName.PIP}}
{{boxModelName.SPR}}
{{boxModelName.TIM}}
catalog 3D CAD RoHS REACH
Step 1: Select Heat Sink Height
Step 2: Select fan
Step 3: Select Push pins and Springs
Step 4: Select TIM
Heat Sink (Height h)
Fan
  Push Pins Springs
{{INP.PIPNAME}} {{INP.SPRNO}}
Thermal Interface

Note

The thermal interface materials listed here are phase change materials (PCMs).

These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen.

In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below).

Storage and Handling Instruction

  • To order individual components, such as push pins or springs,please visit each link/page.

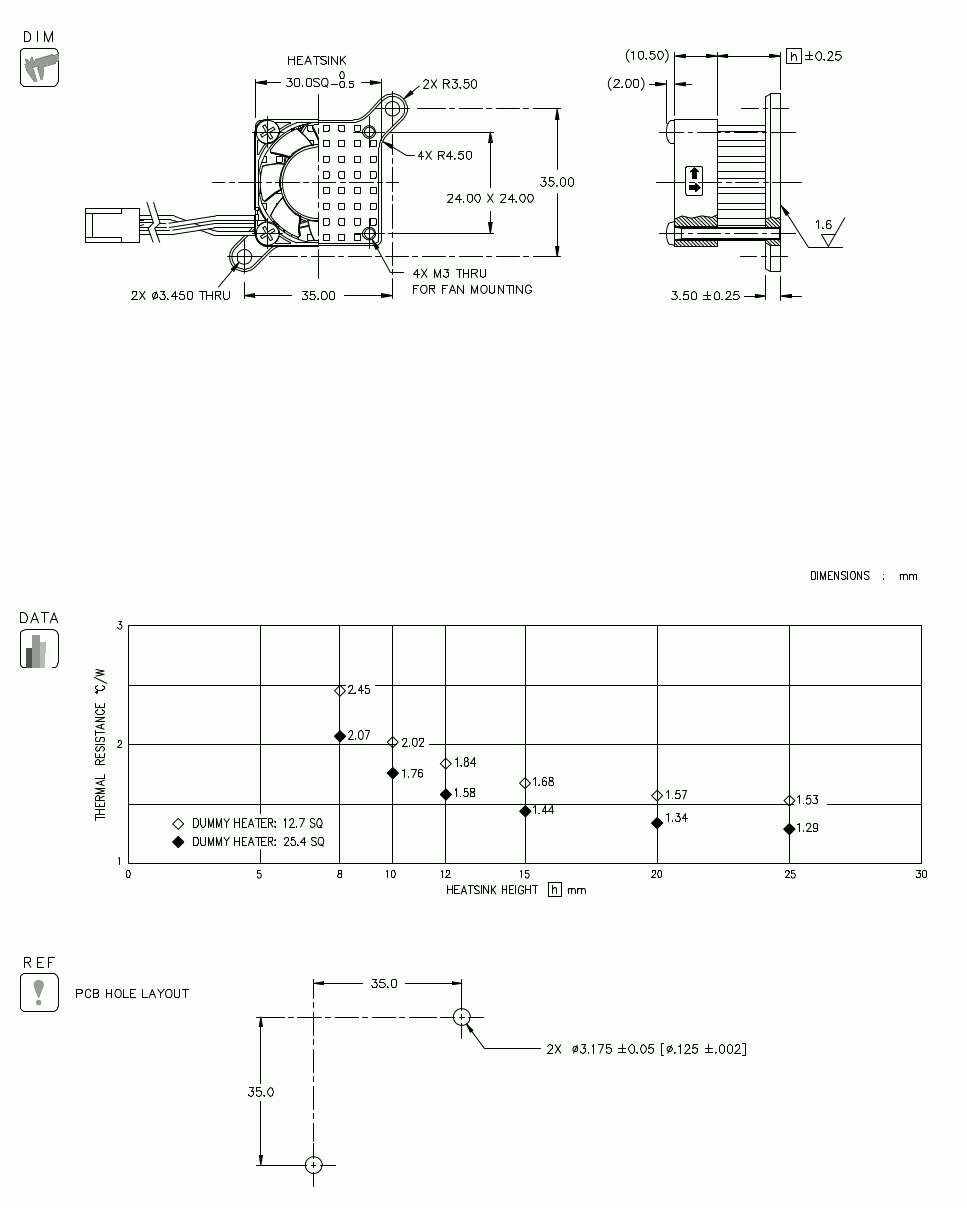

Dimension and Thermal Data
  • HEAT SINK
    MATERIAL : A6063
    FINISH : BLACK ANODIZE
  • FAN
    M32 : COFAN AGE03010B12U-09
    30 SQ +/-0.5, 10.5 +/-0.5 THK
  • SCREW (QTY 4) PAN HEAD PHILLIPS M3 STEEL Cr3+
HEATSINK ONLY
HEATSINK HEIGHT (h) WEIGHT (grams)
8.00 10.4
10.00 11.1
12.00 11.7
15.00 12.7
20.00 14.4
25.00 16.1
HEATSINK AND FAN ASSEMBLY
MODEL WEIGHT (grams)
FSR30-8M32 23.8
FSR30-10M32 25.3
FSR30-12M32 26.3
FSR30-15M32 28.1
FSR30-20M32 30.2
FSR30-25M32 32.7
