FS40

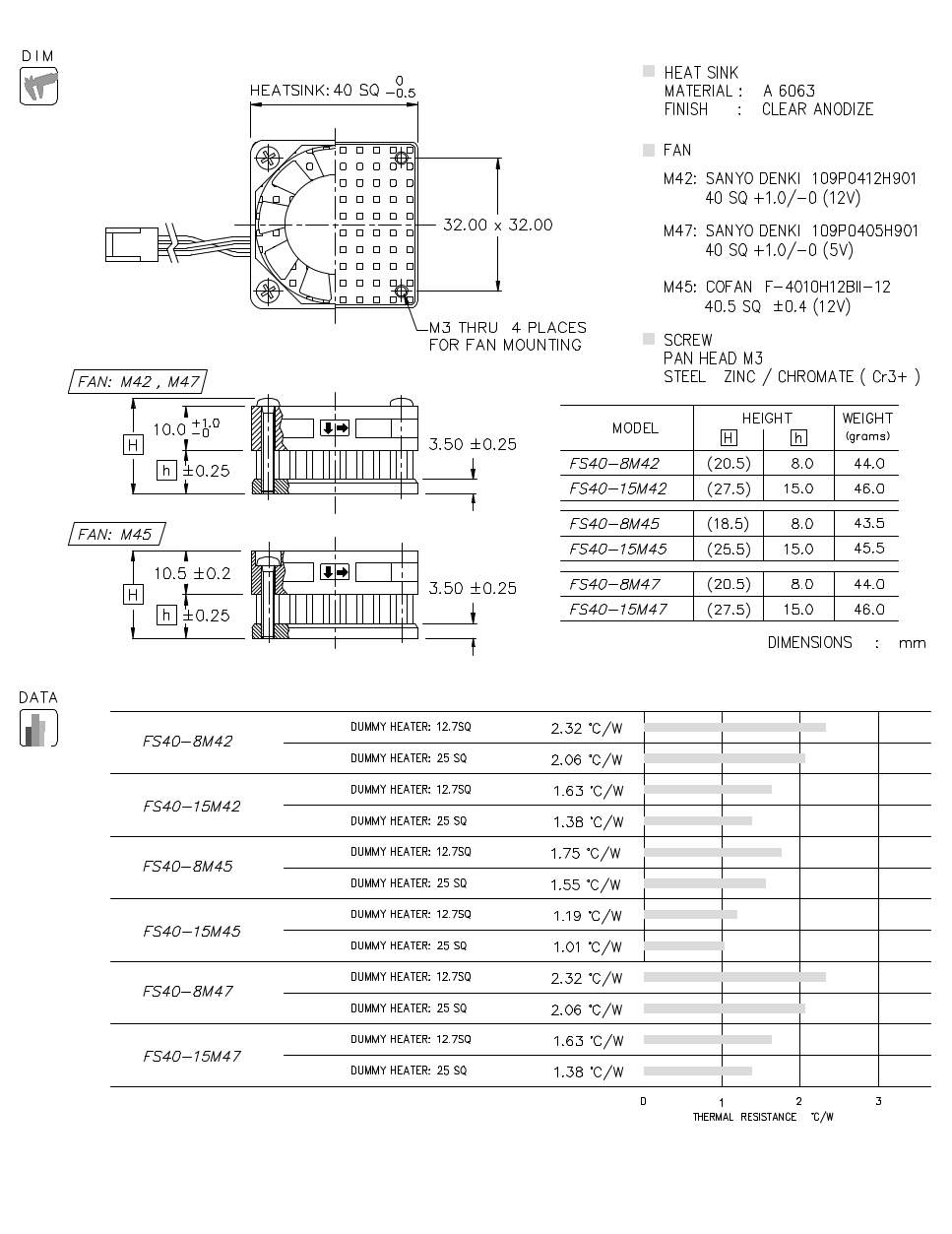

FS40 SPECIFICATION & THERMAL DATA
Model Name :
FS40-
{{boxModelName.HSHEIGHT}}
{{boxModelName.OPTION}}
Step 1:
Select Heat Sink (Height)
Step 2:
Select Option
| Heat Sink (Height) |
|---|
| Option | ||||||
|---|---|---|---|---|---|---|
| Code | Flanges | Fan Screws | Fan | Weight(g) | Download | Customization |
| No | No | No | {{setModelWeight.weight_W}} |
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
||
| No | {{setModelAccessoryName.screw}} | M42 | {{setModelWeight.weight_M42}} | No | ||
| No | {{setModelAccessoryName.screw45}} | M45 | {{setModelWeight.weight_M45}} | |||
| No | {{setModelAccessoryName.screw}} | M47 | {{setModelWeight.weight_M47}} | |||
The fan motor is assembled to the heat sink for M42, M45 and M47 models.
- TESTING SPECIFICATIONS DUMMY HEATER SIZE: 12.7 SQ & 25 SQ
- BASED ON ALPHA'S STANDARD TEST PROCEDURE. REFER TO TECHNICAL INFORMATION.
|
Model | Base Size | Heatsink Height | Pitch |
|---|---|---|---|---|
| FSR40 | 40 x 40 | 8, 15 | 45 x 45 |
