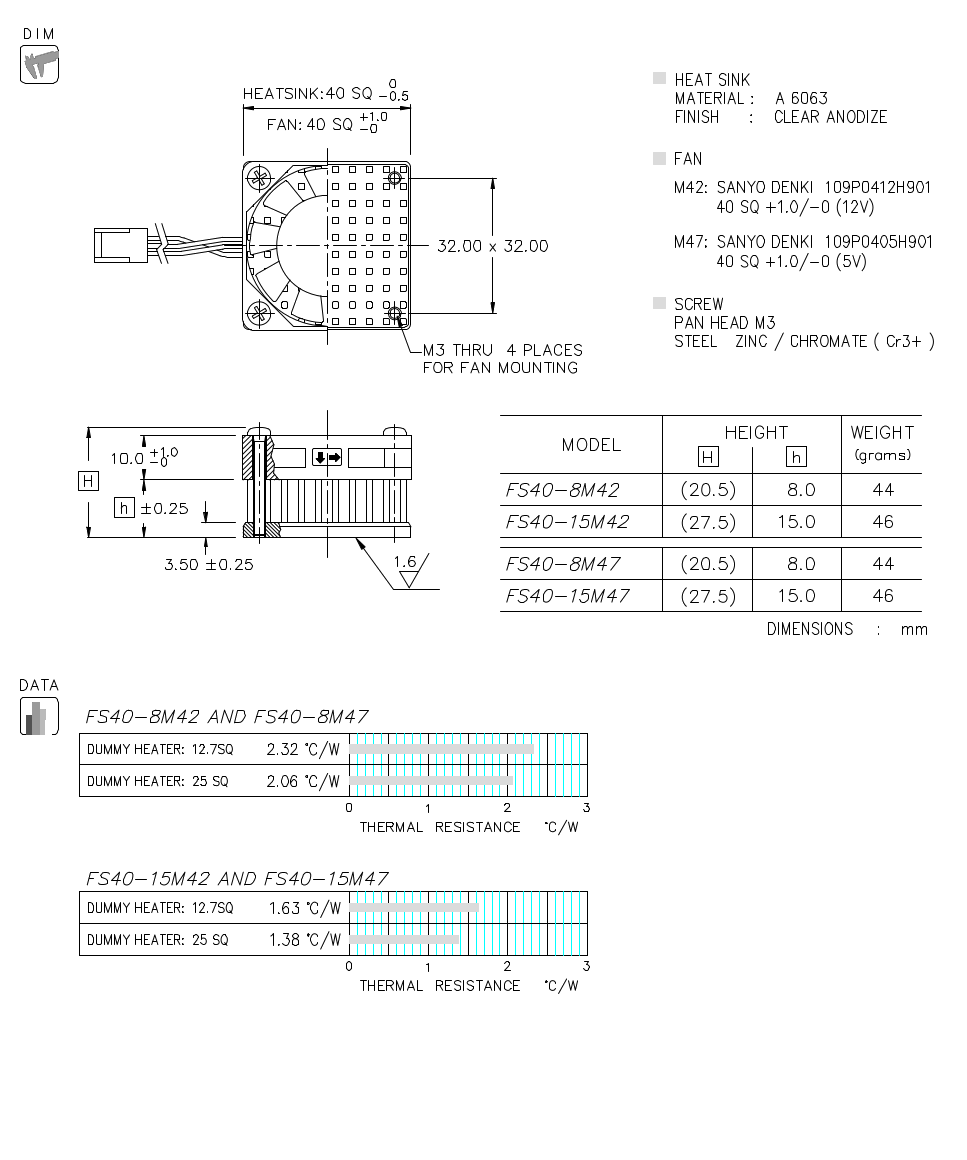

FS40 SPECIFICATION & THERMAL DATA
- HEAT SINK
MATERIAL : A6063
FINISH : CLEAR ANODIZE - FAN / M42
SANYO DENKI 109P0412H901 - SCREW
PAN HEAD M3
STEEL ZINC / CHROMATE (Cr3+)
| Model | Height | Weight | |
|---|---|---|---|
| H | h | (grams) | |
| FS40-8M42 | (20.5) | 8.0 | 44.0 |
| FS40-15M42 | (27.5) | 15.0 | 46.0 |
- Testing Specifications
Dummy Heater Size: 12.7 SQ & 25 SQ
- Based on Alpha's Standard Test Procedure.
Refer to Technical Information.
