M/B information for PAL8045

M/B information for PAL8045

This motherboard list may be inaccurate. This information has been compiled from feedback from review sites and customers. Mohterboard manufacturers may change features, such as capacitor height, which could affect the compatibility of the PAL8045. Please consult your individual reseller as to wether they know of any compatibility issues with your particular board.
PAL 8045 MOTHERBOARD COMPATIBILITY CHART
SOYO  Tyan



MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
ABIT
MAX AT7( NOTE 1)
KD7/KD7-RAID( NOTE 1)
KG7-Lite
KG7/KG7-RAID
KR7A-RAID
KT7A-RAID
KT7-RAID
KT7E
KT7A
KT7
KX7-333
NF7-S Rev1.1- ( NOTE 1)
NV7m
NOTE 1 : When installing the standoff washer, it could possibly touch the surface mount resistors close to the motherboard hole. A possible solution would be cutting a part of washer using a set of nippers or cutting pliers to provide clearance. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application." Please see Photo for reference. (photo:MAX AT7)

MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
AOpen
AK77Pro
AK77-8X-MAX ( NOTE 1)
AK75(J)
AK73Pro(A)
MK77-333
AK79D-400Max
NOTE 1: The PAL8045 will contact one of the board's capacitors, POSSIBLY damaging it. Rounding an edge of the base with a DREMEL or other tool could be a possible solution. This would, however, make you heat sink non-returnable. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
ASUSTek
A7V8X

A7V266
A7V266-E ( NOTE 1)
A7V266-M
A7VL-VM
A7A266
A7V133
A7V133C
A7V133M
A7V333

A7M266
A7N266( NOTE 2)

A7N266-VM
A7N8X
A7S333
A7V600
A7S-VM
A7V-E
A7V (Interference information from customer.)
A7Pro

NOTE 1 : The PAL8045 will fit the A7V266-E board without modification. However, it will contact one of the board's capacitors, POSSIBLY damaging it. Rounding an edge of the base with a DREMEL or other tool could be a possible solution. This would, however, make you heat sink non-returnable. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application.

NOTE 2 : When installing the standoff washer, it could possibly touch the surface mount resistors close to the motherboard hole. A possible solution would be cutting a part of washer using a set of nippers or cutting pliers to provide clearance. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."

MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
BIOSTAR
M7VIG Ver1.0

MANUFACTURER
MODEL
COMPATIBLE NOT COMPATIBLE
CHAINTECH 7VJDA
7NJS
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
DFI
AK76-SN
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
ECS
K7S5A (NOTE 1)
K7VTA3 V3.1
K7VZM

NOTE 1 : K7S5A Ver 3.1 have the capacitors larger than the previous version, so the PAL8045 cannot get in contact with the CPU.
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
EPoX
EP-8K3A+
EP-8KHA(NOTE 2)
EP-8KHA+(NOTE 2)

EP-8KHAL
EP-8K7A (NOTE 1)
EP-8K7A+ (NOTE 1)
EP-8K9A
EP-8K9A3+ (NOTE 4)
EP-8KTA
EP-8KTA+
EP-8KTA2
EP-8KTA2L

EP-8KTA3

EP-8KTA3 Pro

EP-8KTA3+
EP-8KTA3+ Pro

EP-8KTA3L
EP-8KTM
KT-133M
KT-133M+
KL-133M
EP-8KEM
EP-8RDA+(NOTE 3)
EP-8RGA+ Rev1.0 (NOTE 3)

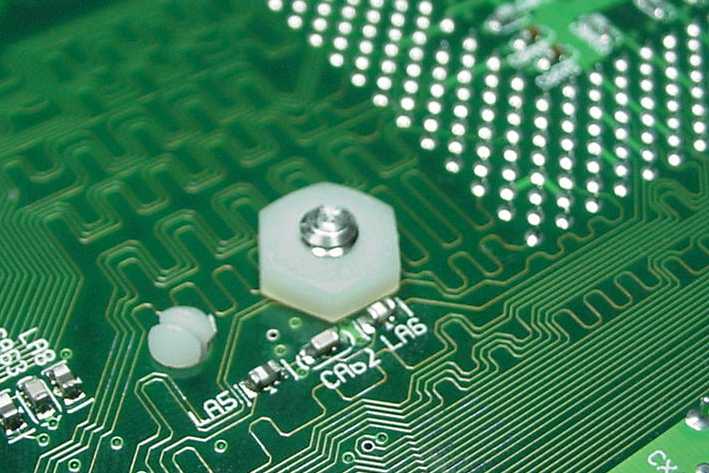

NOTE 1 : Special care must be taken when installing the 8045 on these motherboards. There are two surface mount components on the backside of the motherboard, close to the motherboard hole. When installing the standoffs, make sure the nut is not touching these components. Tighten by turning the standoffs while holding the nuts in place. Do not allow the nylon nuts to turn, or these components could be damaged. Please see Photo for reference.

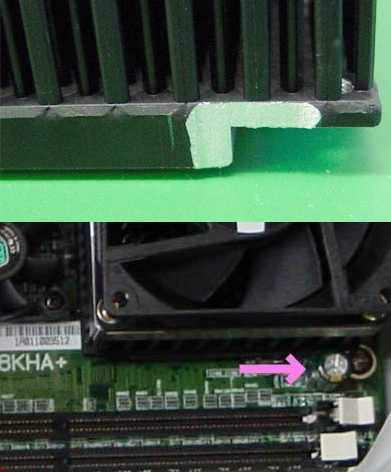

NOTE 2 : The PAL8045 will fit the EP8KHA/8KHA+ board without modification. However, it will contact one of the board's capacitors, POSSIBLY damaging it. Grinding an edge of the base with a DREMEL or file or other tool could be a possible solution. This would, however, make you heat sink non-returnable. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."Please see Photo for reference.

When installing the standoff washer, it could possibly touch the surface mount resistors close to the motherboard hole. A possible solution would be cutting a part of washer using a set of nippers or cutting pliers to provide clearance. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."

NOTE 3 : When installing the standoff washer, it could possibly touch the surface mount resistors close to the motherboard hole. A possible solution would be cutting a part of washer using a set of nippers or cutting pliers to provide clearance. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."

NOTE 4 : The PAL8045 will fit the M/B without modification. However, it will contact one of the board's capacitors, POSSIBLY damaging it. Rounding an edge of the base with a DREMEL or other tool could be a possible solution. This would, however, make you heat sink non-returnable. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application.

MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
FIC
AD-11
AZ-11E / 11EA

MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
GIGABYTE
GA-7DX
GA-7DXC
GA-7DXR (NOTE 1)
GA-7DXR+

GA-7IXE4

GA-7VKML
GA-7VKMP
(GA-7VKMP REV3.4~ has the capacitor near the socket, so the PAL8045 cannot get in contact the CPU.
)
GA-7VTX
GA-7VMM
GA-7VRX ( will contacts the board's capacitor slightly.)
GA-7VRXP(NOTE 2)
GA-7VTXE(NOTE 2)
GA-7VTXE+(NOTE 2)
GA-7VTXH (NOTE 2)
GA-7VTXH+

GA-7ZM
GA-7ZMM
GA-7ZMMC
GA-7ZMMH
GA-7ZX
GA-7ZX-H
GA-7ZXR

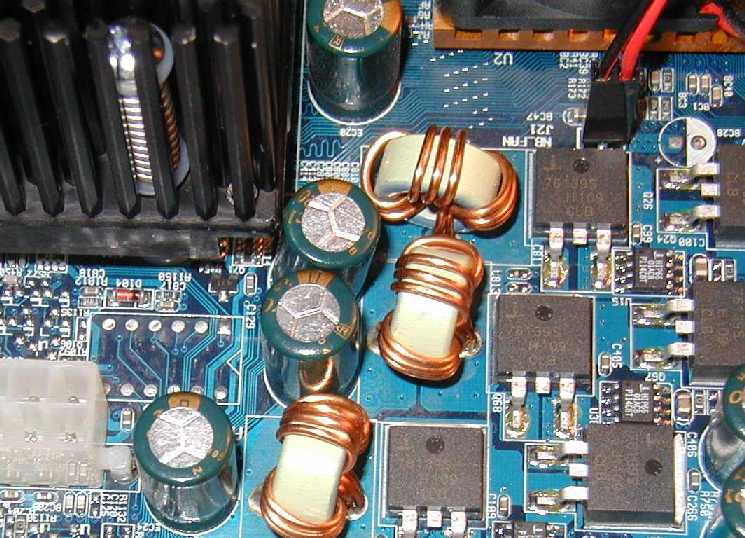

NOTE 1 : The PAL8045 will fit the 7DXR board without modification. However, it will contact one of the board's capacitors, POSSIBLY damaging it. Rounding an edge of the base with a DREMEL or other tool could be a possible solution. This would, however, make you heat sink non-returnable. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."Please see Photo for reference.

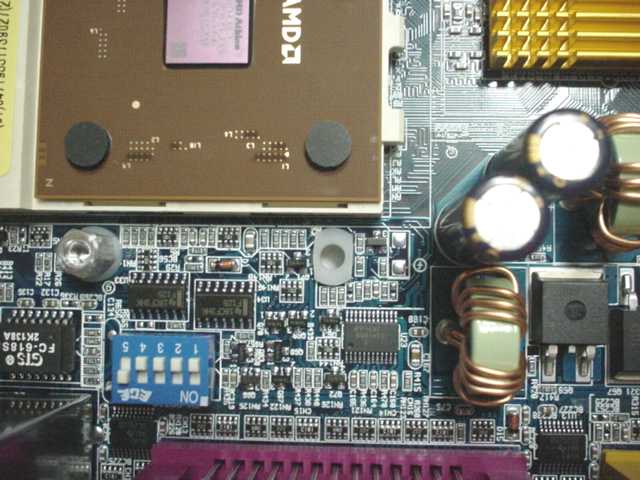

NOTE 2 : When installing the standoff washer, it could possibly touch the surface mount resistors close to the motherboard hole. A possible solution would be cutting a part of washer using a set of nippers or cutting pliers to provide clearance. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application." Please see Photo for reference. (photo:GA-7VTXH)

MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
Iwill
KA266

KA266Plus
KA266-R
KD266
KK266
KK266Plus/KK266Plus-R
KK266-R
XP333-R
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
Jetway
MANUFACTURER MODEL
COMPATIBLE NOT COMPATIBLE
Leadtek WinFast K7NCR18D
WinFast K7NCR18G PRO
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
MSI
K7 Master (MS-6341)
K7N420 Pro (NOTE 1)

K7T266 Pro2-RU(MS-6380-Ver2.0)

K7T266 Pro-R (MS-6380R)
K7T266 Pro
MS-6380LE
K7T Master

K7T Turbo Limited Edition
K7T Turbo
K7T Turbo2 (NOTE 2)

745 Ultra (MS6561)
KT3 Ultra (MS-6380E)
746F Ultra-L (no holes)
NOTE 1 : When installing the standoff washer, it could possibly touch the surface mount resistors close to the motherboard hole. A possible solution would be cutting a part of washer using a set of nippers or cutting pliers to provide clearance. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."

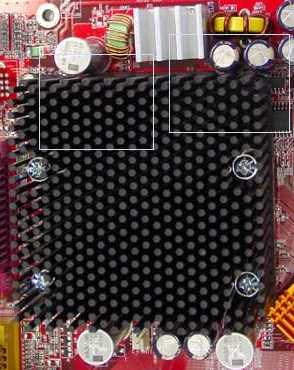

NOTE 2 : The PAL8045 will fit the K7T Turbo2 board without modification. However, it will contact one of the board's capacitors, POSSIBLY damaging it. Grinding an edge of the base with a DREMEL or file or other tool could be a possible solution. This would, however, make you heat sink non-returnable. Due to these issues, we consider the use of the PAL8045 on this board a "Use at your own risk application."Please see Photo for reference.
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
Shuttle
AK31A
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
Soltek
SL-75DRV5

SL-75KAV
SL-75DRV2
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
SOYO
SY-KT400 DRAGON Ultra

SY-K7V DRAGON
Dragon +
MANUFACTURER
MODEL
COMPATIBLE
NOT COMPATIBLE
Tyan
TIGER MP(S2460)
